Brew system pics

[DCBC]

Got the switch wired up to the march pump today. I ended up leaving the plug end on the March Pump and just cut an extension cord in half and wired it to the switch.

[mikelikesit]

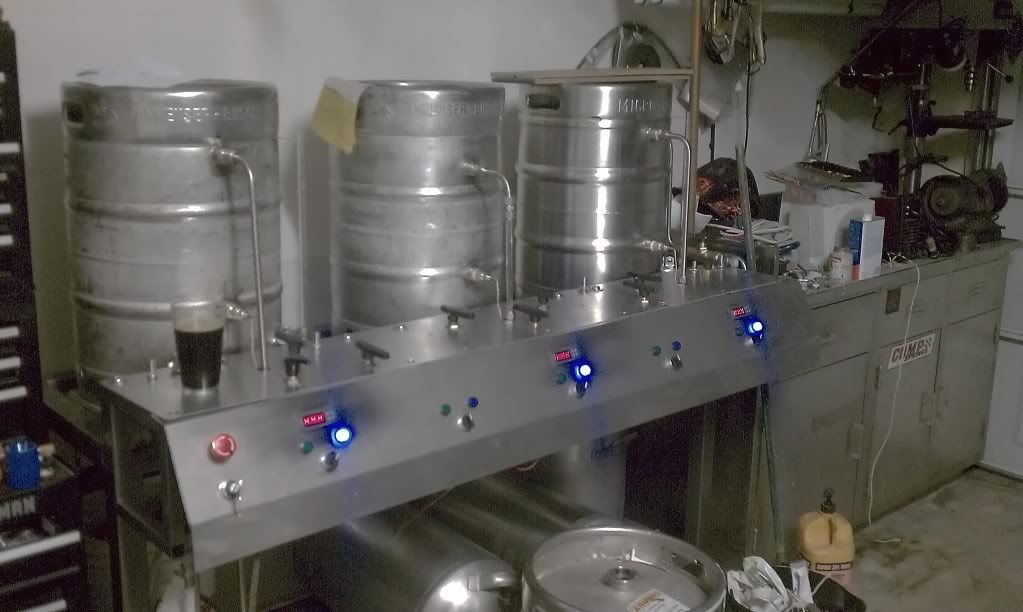

Here's mine. Finished building it a couple months ago. I have brewed on it a few times. Still need to do a few things to it but it gets me by.

[scotchpine]

Awsome looking brewhouse Mike! What are those T handles across the console, do they control flow valves?

[mikelikesit]

Awsome looking brewhouse Mike! What are those T handles across the console, do they control flow valves?

Yeah those are the handles for the valves that are hidden inside. I can control the flow path of the liquid from my vessels to the pumps and then back to the vessels.

Thanks for the compliment.

[lunitick1976]

Dude that is crazy awsome.

[beltbuckle]

mmmmmmm... stainlesss......

[one_dead_soul]

Mike. That looks awesome. but it also looks like its gonna be a bitch to clean.

[Gahr]

Here is my all-electric system. The mash tun is a 10 gallon isolated Boilermaker, the HLT an 8 gallon Morebeer pot. The mash tun is heated using a 1900W induction cooker plate (yes, the Boilermaker works on induction). I resirculate, sparge and whirlpool using a March pump. The setup looks like a mess but it actually works really well.



I oxygenate the wort using a really simple inline system I put together from parts bought at Morebeer.
