Re: Brew system pics

Wed Jan 07, 2009 6:50 pm

Finally got my pix:


Running on NG.


And my fermenting fridge:
Now with 2 cornies and the 8G conical. Total capacity is 28G. Woohoo!
Last edited by Henway on Thu Jan 08, 2009 6:39 am, edited 1 time in total.
User avatar
Henway

Posts: 221
Joined: Thu May 15, 2008 2:13 pm
Location: San Diego

Re: Brew system pics

Thu Jan 08, 2009 4:52 am

Henway, is that electric powered? I like how you mounted everything to the wall, but how do you keep the wall from catching on fire???
Capt. Pushy, BN Army Corps of Engineers
(not to be confused with Push E.)

Building a Better World Through Beer
User avatar
Brew Engineer

Posts: 3514
Joined: Tue Aug 28, 2007 1:47 pm
Location: Central New York

Re: Brew system pics

Thu Jan 08, 2009 6:42 am

Nope, it's NG (also note the CO detector on the top-right side of the fan). The wall used to be an exterior stucco wall for my detached garage and is > 50 years old. I also have a small SS sheet behind the keggle to divert any flames from the wall. I also pull out the water-heater aluminum run-off pan you can see on the right and stick it under the keggle to prevent the linoleum from any heat damage and to collect all possible overflow and wort that escapes when changing or pulling off the disconnects off the March pump.

After a 11G brew day the wall has radiant heat from it like it would on a 90degree day for a couple hours...

I oxy-acet welded all the wall hardware.
User avatar
Henway

Posts: 221
Joined: Thu May 15, 2008 2:13 pm
Location: San Diego

Re: Brew system pics

Thu Jan 08, 2009 7:12 am

Sweet, it still scares the hell out of me, but it's awesome!
Capt. Pushy, BN Army Corps of Engineers
(not to be confused with Push E.)

Building a Better World Through Beer
User avatar
Brew Engineer

Posts: 3514
Joined: Tue Aug 28, 2007 1:47 pm
Location: Central New York

Re: Brew system pics

Fri Jan 09, 2009 3:20 pm

I need a fricken pump!!
"FIZZY YELLOW BEER IS FOR WUSSIES"
User avatar
GOT_HOMEBREW

Posts: 49
Joined: Sat Jan 19, 2008 9:08 am
Location: LANTON, MO

Re: Brew system pics

Tue Jan 13, 2009 8:08 am

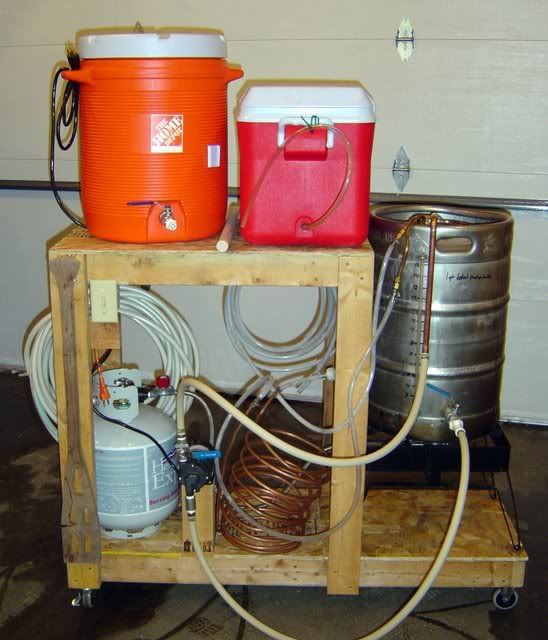

Put the finishing touches on the re-designed system last night.
Recirculating Immersion Chiller - Whoo Hoo!

User avatar
WitsEnd

Posts: 127
Joined: Sat Dec 23, 2006 12:26 pm
Location: Baxter, MN

Re: Brew system pics

Thu Jan 15, 2009 1:28 pm

Welcome to the Geto fellas. It's about as safe as it looks...

ApresSkiBrewer
-
Siebel Fall '09 - BREW CREW.
User avatar
ApresSkiBrewer

Posts: 1108
Joined: Sat Jun 23, 2007 7:38 pm
Location: VT'er now in the Bay Area!

Re: Brew system pics

Thu Jan 15, 2009 2:32 pm

Ghetto? Come on, a coat of paint and it's everything you need. You got your pump, your keggle, your IC, and your water filter--you got the most important stuff.

Remember, a skanky garage is better to brew in than a nice kitchen...

Make beer!!!
User avatar
Henway

Posts: 221
Joined: Thu May 15, 2008 2:13 pm
Location: San Diego
